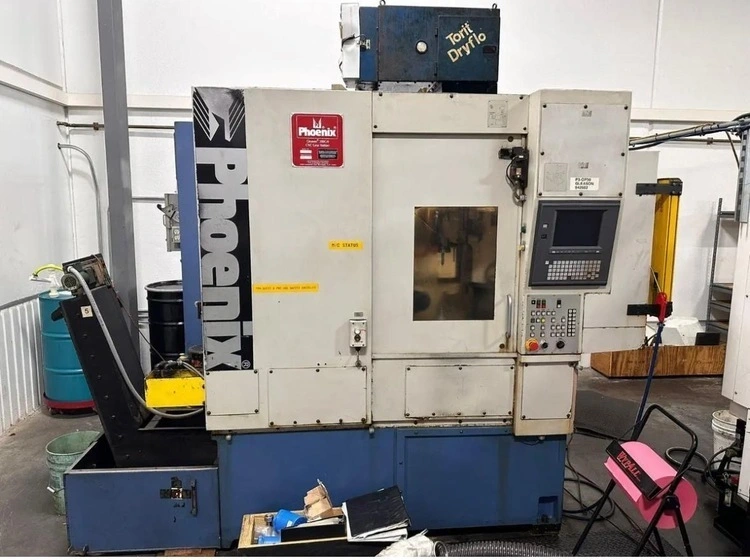

Used 2000 GLEASON 200GH | Gear Hobbers
Have one to sell?
ConditionUsed
1 available
WE WILL SHIP THIS MACHINE TO OUR FLOOR WHERE UPON WE WILL INCREASE THE TAILSTOCK CAPACITY TO SUIT YOUR WORK. TOOL THE MACHINE TO FIT YOUR FAMILY OF CAMSHAFTS. FURTHERMORE, WE WILL REPAIR ALL DEFICIENT MECHANICAL ASPECTS OF THE MACHINE AND DEMONSTRATE THE MACHINE ON OUR FLOOR TO THE SATISFACTION OF YOUR PERSONNEL.
MAX WORKPIECE DIAMETER 8.07
MAX DIAMETRAL PITCH 4 NDP
MAX HOB SETTING ANGLE -180 DEGREE +40 DEGREE
CENTER DISTANCE FROM HOB SPINDLE TO
WORK SPINDLE .59" MIN
7.09 MAX
MAX RADIAL SLIDE TRAVEL 6.5"
HEIGHT WORK SPINDLE TO CENTER OF HOB SPINDLE .98" MIN
12.8" MAX
MAX AXIAL HOB SLIDE TRAVEL 11.81"
DISTANCE BETWEEN WORK SPINDLE FACE AND
TAILSTOCK SPINDLE FACE 9.9" MIN
18.62" MAX
WORKSPINDLE MOUNTING DIAMETER 7.09"
WORK SPINDLE PILOT DIAMETER 3.906" GLEASON # 39 TAPER
DEPTH OF HOLE AT UPPER DRAWROD POSITION 6.00"
BOLT CIRCLE DIAMETER ON WORKSPINDLE 4.92"
MAX. HOB DIAMETER 4.5"
MAX HOB LENGTH 8.5"
TANGENTIAL HOBSHIFT TRAVEL 7.87"
HOB SPEED RANGE 150 - 1500 RPM
WORKSPINDLE SPEED RANGE 5 - 150 RPM
MAX RAPID AXIAL TRAVEL RATE 236" INCH PER MINUTE
MAX RAPID RADIAL TRAVEL RATE 236" INCH PER MINUTE
HOB DRIVE MOTOR FANUC MODEL 15 20.1 HP
FLOOR SPACE (LENGTH X WIDTH X HEIGTH) 106" X 65" X 123"
WITH MIST COLLECTOR
APPROXIMATE NET WEIGHT 15,000 LBS.
FANUC CNC CONTROL 6 AXIS
HOB ARBOR
CHIP CONVEYOR
MIST COLLECTOR
AUTO LOADER
LIGHT CURTAIN
SOME TOOLING
