Excellent FELLOWS 20-4 (20-5) | Gear Shapers
Have one to sell?
ConditionUsed
1 available

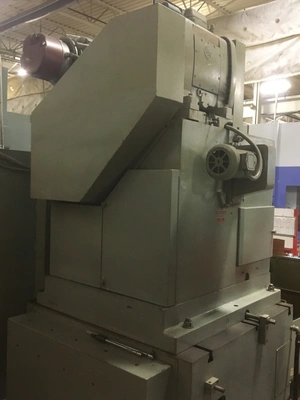

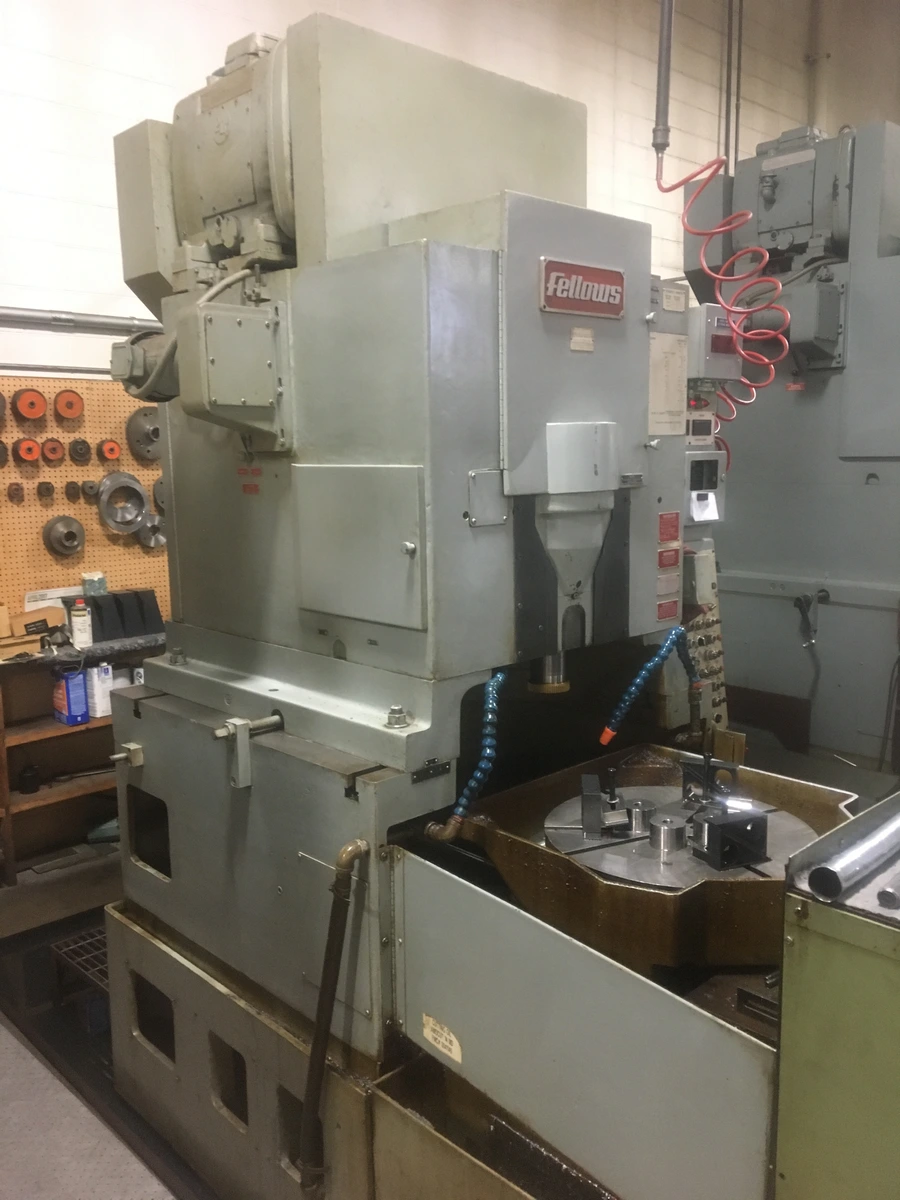

FELLOWS 20-4 (20-5) Gear Shaper for sale. Used condition with max 20" gear dia., 45° helix angle, equipped with spur guide, rapid table rotation. Ideal for diverse shaping tasks.
CAPACITIES:
MAX. P.D. 20"
MAX. DIAMETRAL PITCH, SPUR 4
MAX. FACE WIDTH 5"
MAX. HELIX ANGLE 45 DEGREES
MAX. O.D. OF FIXTURE 27"
SPINDLE FACE TO TABLE TOP 16"
BORE IN WORK SPINDLE 9.05"
DEPTH OF TABLE BORE 18"
STROKING SPEED RANGE 33 TO 400 SPM (THIS RANGE CAN BE CHANGED TO HIGHER SPEED)
SPUR GUIDE 5" FACE WIDTH
4" RISER
THREE CUT SELECTION
AUTOMATIC STROKE SPEED CHANGE
INFINITELY VARIABLE FEED RATES
CUTTER POSITIONING
AUTOMATIC FIXTURE CLAMPING
QUICK CUTTER RETURN (SHORTENS CYCLE TIME)
RAPID TABLE ROTATION
