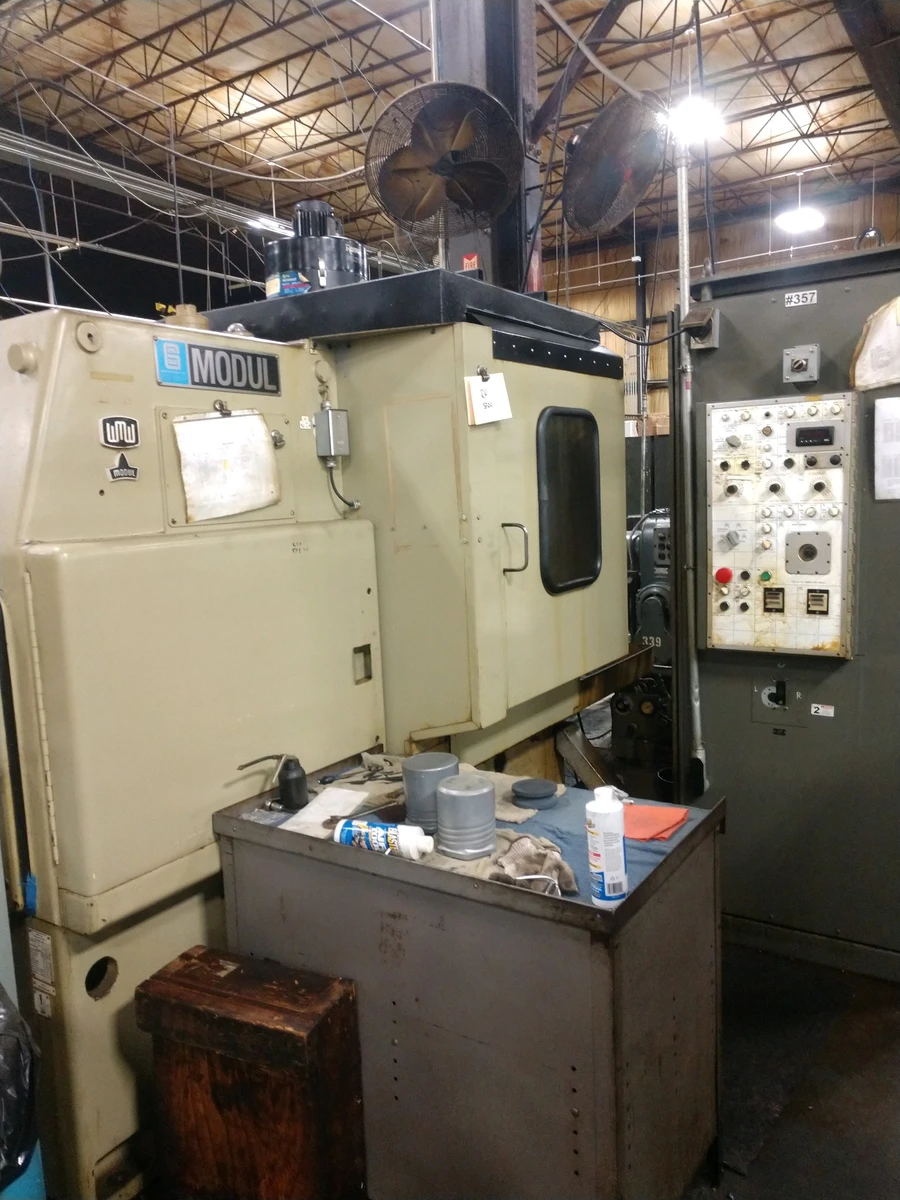

MODUL ZFWZ 250-3
Have one to sell?
ConditionUsed
1 available
VERTICAL GEAR HOBBER
Workpiece Diameter max. 250 mm/9.84"
Possible Module/DP in steel 6 Mod/4 P
Maximum Axial Travel 10.75"
Maximum Tangential Travel 4"
Maximum Helix Angle 45 degrees
Maximum Hob Diameter 145mm/5.75
Maximum Hob Length 6.7"
Maximum Hob Shift travel 4"
Min./Max. Hob Center to Work Table 7.75"/18.5"
Min./Max. Hob Center to Worktable Cnt. .8"/9"
Hob Speed Variable 50 to 500 rpm
Axial Feed Variable 0.01 to 0.4 ipr
Tangential Feed Variable .005 to .2
Radial Feed Variable .001 to 0.16 ipr
Main Motor 10 HP
Total Connected Load 14 KVA
1 1/4" hob arbor,
Magnetic Chip Conveyor,
2-Start Index Worm,
Differential,
Hob Shift,
One or Two-cut Cycle,
Climb or Conventional Hobbing,
Hydraulic Drawbar,
Hydraulic Tailstock,
Free Standing Electrical Cabinet,
Complete Electrical and Hydraulic Prints,
Many Change Gears.
