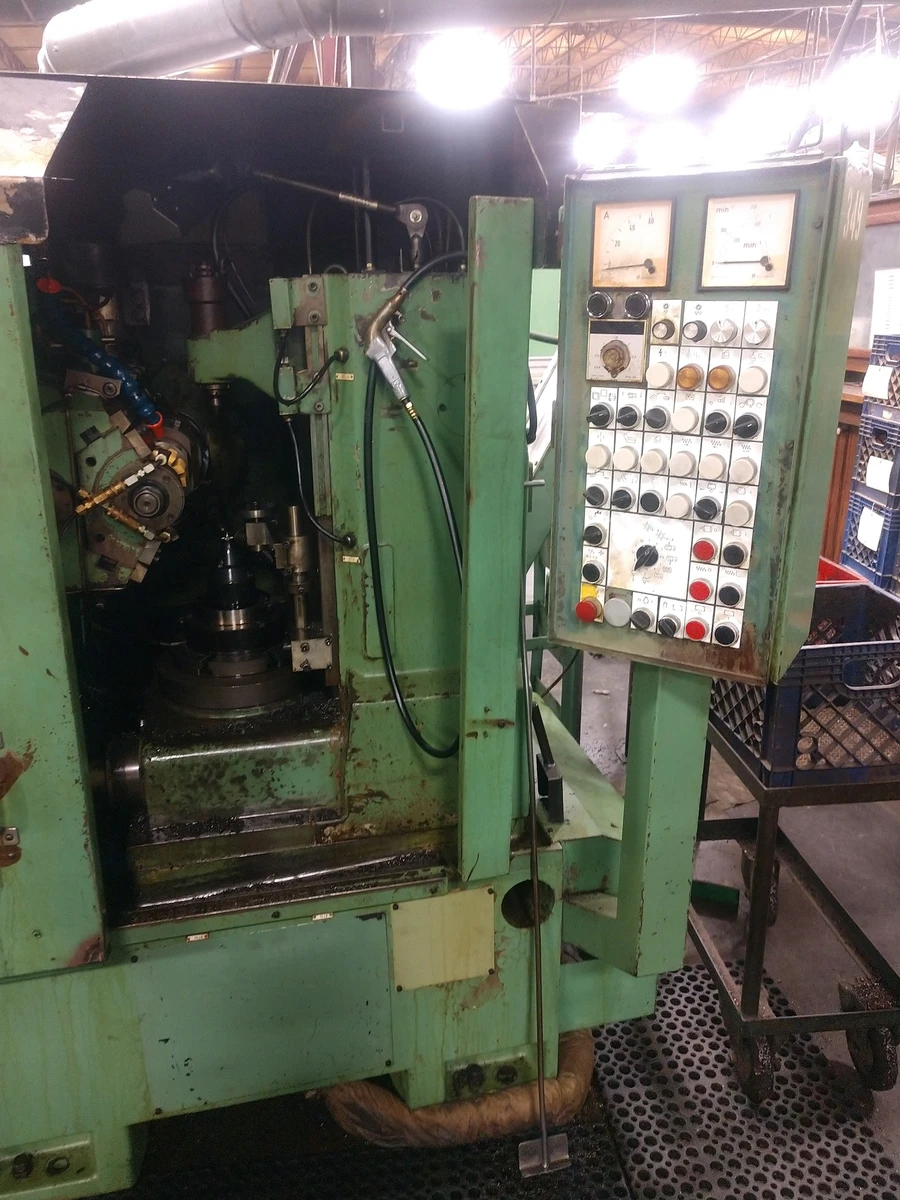

LIEBHERR L252
Have one to sell?
ConditionUsed
1 available
10" GEAR HOBBER
Workpiece Diameter max. 250/9.84
Possible Module/DP in steel 6/4.2
Index Wheel Diameter 285/11.22
Maximum Hob Diameter 145/5.7
Maximum Hob Length 200/7.9
Maximum Hob Shift travel 160/6.7
Hob Speed Variable 80 to 480 rpm
Axial Feed Variable .1 to 7.5/0.004 to 0.3 ipr
Tangential Feed Variable .025 to 2/.001 to .08
Radial Feed Variable .7 to 14/.027 to 0.55 ipr
Main Motor 10 HP
Total Connected Load 14 KVA
1 1/4" hob arbor,
Magnetic Chip Conveyor,
2-Start Index Worm,
Differential,
Hob Shift,
One or Two-cut Cycle,
Climb or Conventional Hobbing,
Hydraulic Drawbar,
Hydraulic Tailstock,
Free Standing Electrical Cabinet,
Complete Electrical and Hydraulic Prints,
Some Change Gears.
