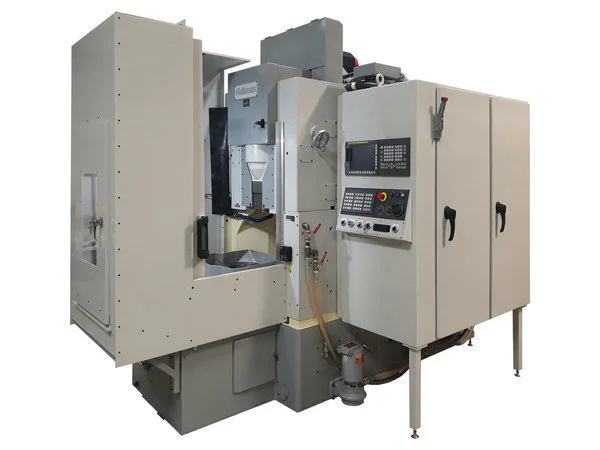

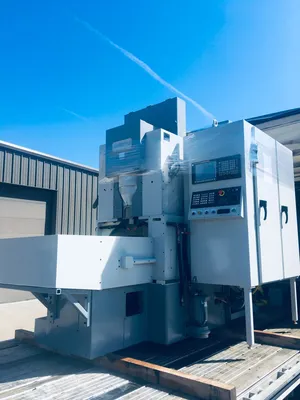

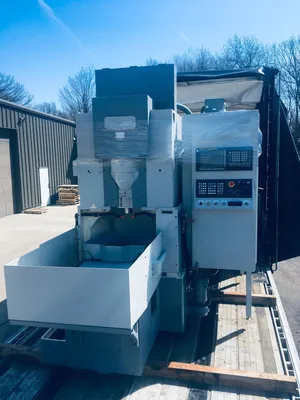

FELLOWS 10-4 CNC rebuilt

FELLOWS 10-4 CNC rebuilt

ELECTRICAL:
FANUC Oi-MF CONTROL WITH CONVERSATIONAL SET-UP, DIAGNOSTIC & PRODUCTION SCREENS
A AXIS CUTTER SPINDLE IS CONTROLLED BY A FANUC SERVO MOTOR
NO CHANGE GEARS REQUIRED FOR B & C AXIS (TABLE & CUTTER SPINDLE ROTATION)
Z AXIS SERVO BALL SCREW CONTROL
MANUAL PULSE GENERATOR TO MOVE ALL AXIS IN MANUAL MODES
INCH OR MM UNITS OF MEASUREMENT CHOSEN BY A TOGGLE BUTTON
INTERNAL OR EXTERNAL CYCLE OPTIONS
AUTOMATIC CUTTER POSITIONING AT THE END OF AN INTERNAL CYCLE
GEAR, GEAR WITH LASER LOCATION, SLOT AND SECTOR CUTTING MODES
AUTO LOAD POSITIONING OF THE WORK TABLE AND CUTTER SPINDLE
AUTOMATIC CUTTER SHIFTING
ONE TO FOUR CUT CYCLE SELECTION. EACH CUT HAS INDIVIDUAL PARAMETERS OF: DEPT OF CUT, INFEED RATE, STROKING SPEED, ROTATIONAL FEED RATE AND DEGREE OF WORK ROTATION
AUTOMATIC HOMING BUTTON
RE-CUT BUTTON FOR USAGE IN SIZING THE LAST CUT WITHOUT CYCLING THROUGH THE PREVIOUS CUTS
SET-UPS CAN BE SAVED TO MEMORY
THERMAL COMPENSATION
CYCLE AND SHIFT COUNTERS AND TIMERS ON THE PRODUCTION SCREEN
OPERATOR SET UP LOCK OUT OPTION
THE ELECTRICAL SYSTEM IS PREPPED TO ACCOMMODATE A TAIL STOCK AND CHIP CONVEYOR
AUTOMATIC WORK CLAMPING WITH SEQUENCE CHOICES

MECHANICAL:
SPUR GUIDE
3" RISER
HYDRAULIC CLAMPING CYLINDER
CROWNING AND TAPER FEATURE CONTROLLED VIA FORMS GROUND ON THE BACK-OFF CAM
HYDRO-STATIC CUTTER SPINDLE BUSHING
CENTRALIZED HYDRAULIC & LUBRICATION SYSTEM WITH CONTINUOUS FILTERING
SEPARATE WAY LUBRICATION SYSTEM FOR THE WAYS AND BALL SCREW
AIR CONDITIONED ELECTRICAL CABINET
ATTACHED ELECTRICAL AND HYDRAULIC SYSTEM
ENCLOSED SPLASH GUARD SYSTEM WITH AUTOMATIC DOOR LOCK AND WORK LIGHT
