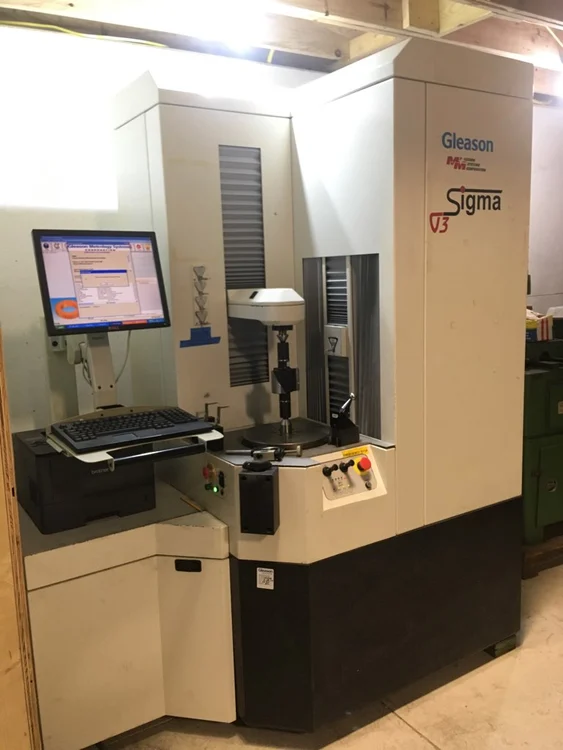

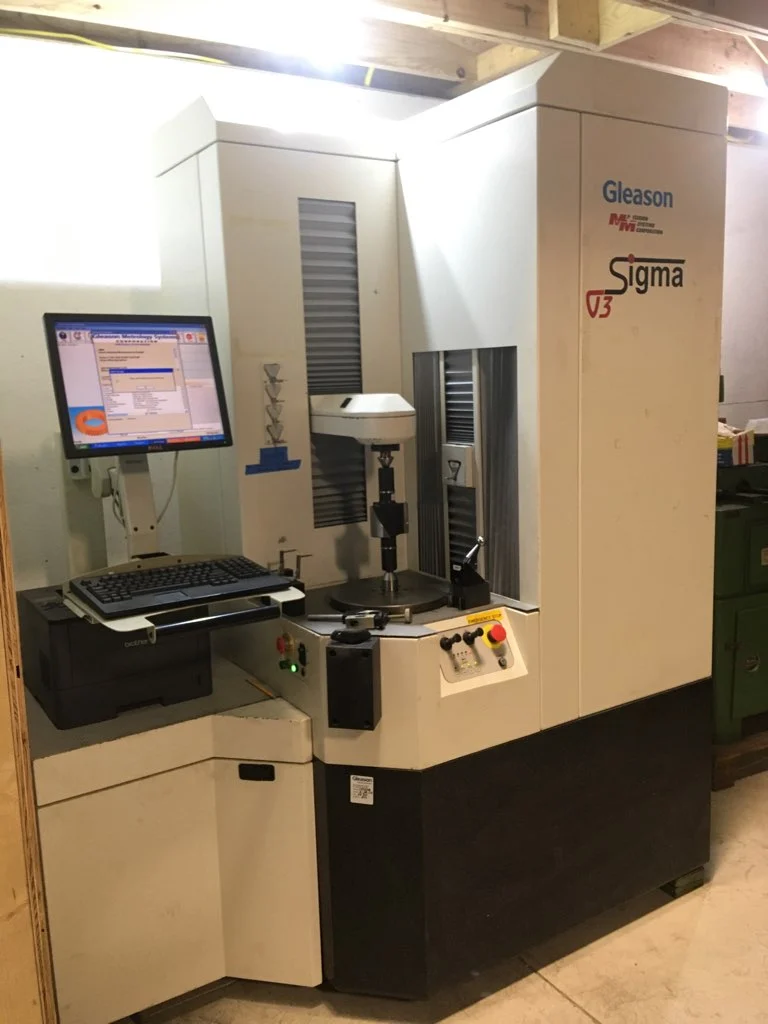

2008 GLEASON SIGMA V3

Excellent 2008 GLEASON SIGMA V3 | Gear Testers

Have one to sell?
(248) 628-3200
oxfordgearmachinery@gmail.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Gear Testers
Manufacturer:
GLEASON
Model:
SIGMA V3
Condition:
Excellent
Year:
2008
Stock #:
1022
Status:
For Sale
Serial #:
6630
Max Gear Diameter to be checked14"355.6 mm
A-axis, 360 degrees of travel, Table Diameter11.8"299.72 mm
X-axis, right to left travel of the measuring slide7.25"184.15 mm
Y-axis, front to back travel of the measuring slide19.75"501.65 mm
Z-axis, up and down travel of the measuring slide18.5"469.9 mm
Maximum length part between centers26.5"673.1 mm
Maximum weight of part to be checked400 lb181.4 kg
Power Requirements110 vac/220 vac, 10/5 Amps110 vac/220 vac, 10/5 Amps
TypeGEAR INVOLUTE, LEAD AND SPACING TESTERGEAR INVOLUTE, LEAD AND SPACING TESTER
ControlCNC (GLEASON CNC)CNC (GLEASON CNC)
Dimensions70 X 43 X 8470 X 43 X 84
Weight6,5006,500

GLEASON/M&M INVOLUTE AND LEAD MASTER GAUGE
CALIBRATION SPHERE
6 TEST PROBES
DRIVER DOG
CENTERS
MANUALS

GAMA SOFTWARE 2.3.102 UPDATED IN 2017
SOFTWARE OPTIONS INCLUDE:
COMPARE
JOURNAL REFERENCE
TOPOGRAPHY
STRAIGHT SIDED SPLINE
KEYWAY
DIN 5480
JIS 1702-1998
ANSI B92
JIS 1702-1976
INDEX ECCENTRICITY REMOVAL
CHINA GB10095-1998 ANALYSIS
CHINA GB10095-2001 ANALYSIS
DIN SCAN
GM ISO ANALYSIS
BIAS/TWIST CHART
