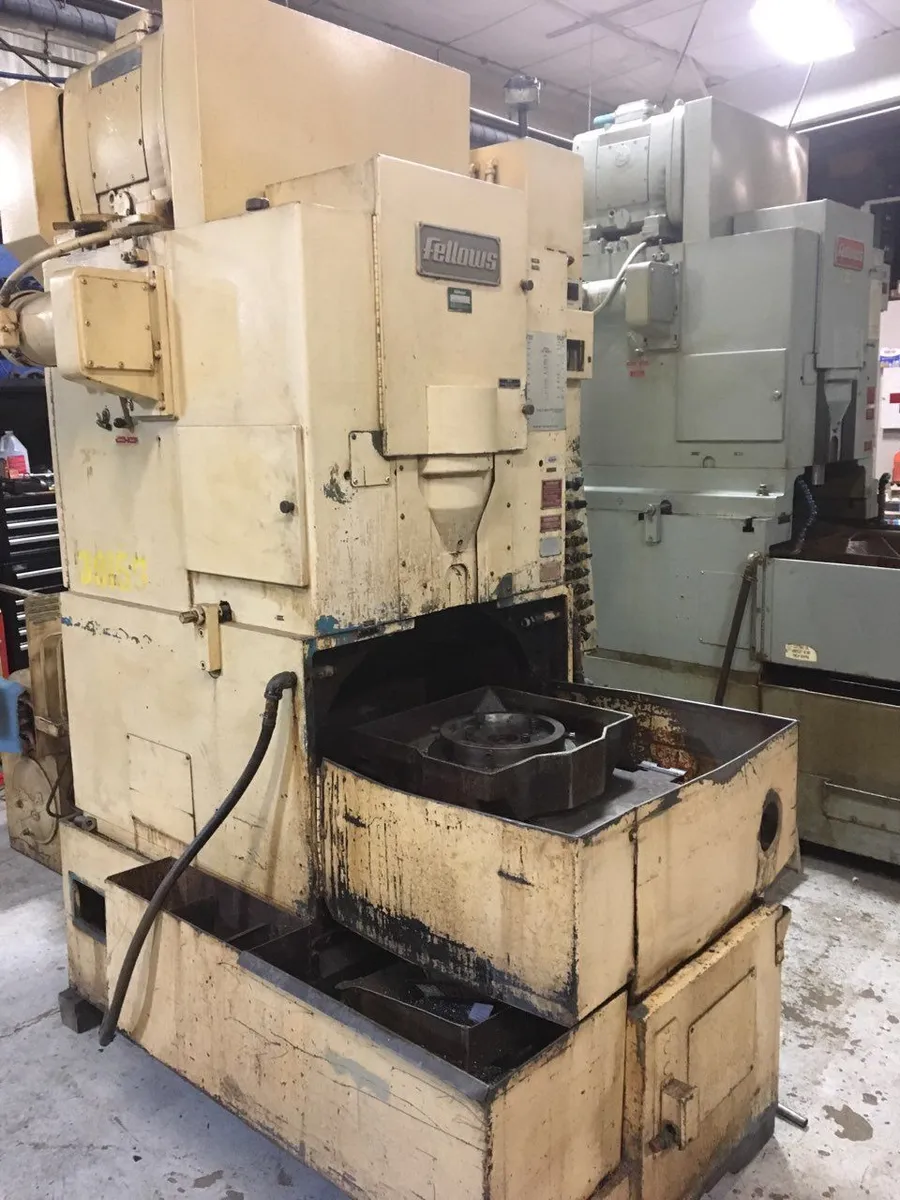

Fellows 10-4
Have one to sell?
ConditionUsed
1 available
MAX. PITCH DIAMETERS EXT/INT 10"
MAX. FACE WIDTH CUT 4"
MAX. DIAMETRAL PITCH SPUR 4
MAX. DIAMETRAL PITCH HELICAL 5
MAX. HELIX ANGLE USING A 5" CUTTER 45 deg.
MAX. STROKES PER MINUTE 1300 Depending on desired range
MAX. OD OF WORK OR FIXTURE 19"
BORE THROUGH WORK SPINDLE 5.875"
CUTTER SPINDLE DIAMETER 3.543"
DISTANCE BETWEEN WORK TABLE & CUTTER HEAD 13"
VOLTAGE 480 VAC 60 AMP
SPUR GUIDE 4" FACE WIDTH
3" RISER
ONE TO THREE CUT SELECTION
AUTOMATIC STROKE SPEED CHANGE
INFINITELY VARIABLE FEED RATES
CUTTER POSITIONING
AUTOMATIC FIXTURE CLAMPING
FINE TOOTH ADJUSTMENT CLUTCH
SOME CHANGE GEARS
