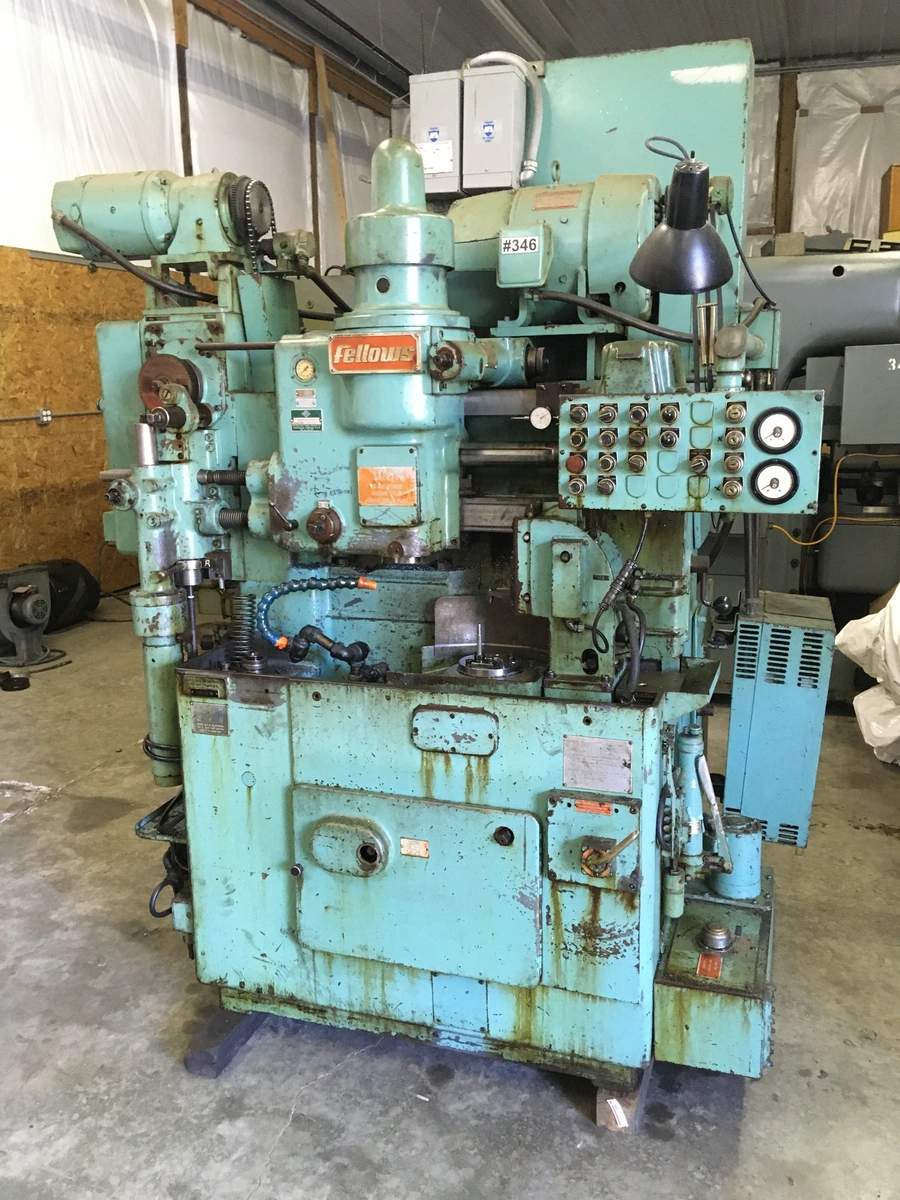

Fellows 4AVS w/ Tailstock

Manufacturer: Fellows
Model: 4AGS (4A Gear Shaper)
Maximum Gear Diameter: 7 inches (External)
Maximum Stroke Capacity: 2 inches
Maximum Pitch Diameter (Ext/Int): 6
Maximum Face Width: 2 inches
Maximum Diametral Pitch (Spur): 4/5
Maximum Diametral Pitch (Helical): 6
Maximum Taper Angle: 10° +/-
Table Diameter: 6 inches
Cutter Spindle Diameter: 3.750 inches
Machine Weight: Approx. 7,000 lbs
Machine Dimensions: Approx. 6' Wide x 5' Deep
Features & Capabilities
Application: Specifically designed for external/internal spur and helical gears, tapered gears, splines, and cams.
Cycle Types: Manual, semi-automatic, and full-automatic cycles.
Equipped With: Often includes a fixed tapered riser assembly for back-tapered gears, Bijur lubrication system, and various change/feed gears.
Drive: Typically 5 HP DC main motor with a 3/4 HP coolant pump.
